Keychron V1 Max QMK/VIA Wireless Custom Mechanical Keyboard

SKU: KBKCV1MD1
$149.00 $159.00

Type
Color
Switches


The fully assembled version includes:
  • ABS plastic housing
  • The keyboard PCB, screw-in stabs, and the PC plate
  • Double-shot OSA PBT keycaps (including Mac & Windows keycaps)
  • Gateron Jupiter switches

The barebone version does not include the keycaps and switches.
No discount codes can be used for V1 Max.

Please drop your email on "Notify Me When Available" if the product model is out of stock.


Keychron V1 Max 75% Layout QMK/VIA Wireless Custom Mechanical Keyboard

Keychron V1 Max

The V1 Max is a fully customizable mechanical keyboard, offering both 2.4 GHz wireless and Bluetooth 5.1 connectivity. Its compact 75% layout, gasket mount design, sound absorbing foam, double-shot PBT keycaps, and more take your typing experience to a new level, delivering heightened levels of comfort and productivity.

Keychron V1 Max 75% Layout QMK/VIA Wireless Custom Mechanical Keyboard
Keychron V1 Max 75% Layout QMK/VIA Wireless Custom Mechanical Keyboard
Keychron-V1-Max-features-icon.jpg__PID:e5218c19-3ab2-424f-b4fc-3afce8f66254
Customize Your V1 Max

Choose the keycaps, switches and more accessories for your V1 Max

Section
Drop element here

All-around customizable keyboard

To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every parts the way you want.

V1-Max-structure.jpg__PID:a31d1aeb-798f-4f16-8c48-63aa5b1ba73f
V1-Max-structure-mobile.jpg__PID:fda31d1a-eb79-4fef-964c-4863aa5b1ba7
Section
Drop element here

2.4 GHz & Bluetooth Connection

Experience peak gaming performance on the fly with the 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the V1 Max via Bluetooth 5.1 to three devices.

V1-Max-8.jpg__PID:6959e448-4d56-48b5-973f-9a14827b6347
V1-Max-4.jpg__PID:dd719dd9-3ed0-4cf8-97eb-cc3b3f280813

An Epic Core Inside The Keyboard

A powerful ARM architecture MCU equipped with 256K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box, which makes the latency hardly noticeable even in competitive games.

OSA Profile Double-shot PBT Keycaps

These double-shot PBT keycaps have a similar height to the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.

V1-Max-7.jpg__PID:be745b5a-2239-4047-80d9-278168ec6497
Section
Drop element here
V1-Max-OS-toggle.jpg__PID:397183bc-d343-4c75-abe8-4f8f6a8e0897

Switch Layouts Between macOS & Windows

Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron V1 Max comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

Gasket Mount Design

By adopting a gasket mount design along with a PC (Polycarbonate) plate, the V1 Max reduces acoustic resonance, delivering a softer and quieter typing experience with enhanced flexibility.

V1 Max gasket mount.gif__PID:78a8dcea-419c-4585-aea1-998b2400e25c

Program V1 Max with QMK & VIA

With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, even the knob, and more.

V1 Max VIA Screenshot.png__PID:61d37194-cd11-45c4-935e-c77afecdba9a

Get the V1 Max keymap working on VIA

Since the VIA code for the V1 Max is still awaiting approval from Github, it is not yet automatically recognized. Please download the appropriate keymap JSON file below, open VIA, turn on "Show Design tab" on "Settings" tab, and drag the JSON file into the “Design” tab on VIA to get the V1 Max keymap working on VIA.

Download V1 Max Knob ANSI (US) Keymap JSON File

Hot-swappable

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3-pin and 5-pin MX mechanical switches.

Keychron-V1-Max-Barebone.jpg__PID:7ee50bcc-3715-40bc-8ca6-ee4d0bdc446e

South-facing RGB LED Lights

The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.

Gateron Jupiter Switch

Our exclusive Gateron Jupiter mechanical switch (for the Fully Assembled version only) comes with a 5-pin design, its pre-lubed with a reliable Gateron quality standard with up to 80 million keystrokes lifespan. While their unique LED diffuser design offers high RGB backlight transmittance and softer backlight effect.
The banana switch provides an early tactile bump at the top with a uniquely smooth experience like those Panda switches on the market.

Keychron-Gateron-Jupiter-MX-mechanical-switch-red-brown-banana.jpeg__PID:d42576f6-0f92-468d-93d6-9f816a1ebc2f
All New Screw In PCB Stabilizers Keychron V1 Custom Mechanical Keyboard

Screw-In PCB Stabilizers

Even small part matters for your fingertip feel. We’ve integrated the PCB-mounted screw-in stabilizers for a smoother typing experience with less wobbliness on the big keys such as space bar, shift, enter, and delete. The Keychron V1 Max also supports third-party screw-in PCB stabilizers.

Looking for ISO Layout?

The V1 ISO collection comes with fully assembled keyboards with 🇬🇧UK, 🇩🇪German, 🇩🇰🇫🇮🇮🇸🇳🇴🇸🇪Nordic, 🇨🇭Swiss, 🇫🇷French, and 🇪🇸 Spanish layout.

Check The V1 ISO Layout Collection

What's in the box?

V1-max-Package-list.jpg__PID:c7e0d591-e77d-4c15-b6b0-8367dc8b67e2
V1-Max-package-list-barebone.jpg__PID:08e4cf05-c296-41e0-8c7a-0df250544dd7
Differences-V1-Max-V1.jpg__PID:e0c5e5f1-4104-4a6d-ba9a-bd766653234e

Specs

Width148.7 mm
Length328.5 mm
Front Height21.5 mm  (without keycaps)
Back Height29.4 mm (without keycaps)
Feet Height2 mm
Angle3.5° / 7.1° / 9.5°
Weight770 g ± 10 g (Fully Assembled Version)
Body MaterialABS Plastic
Plate MaterialPC
Polling Rate1000 Hz (2.4 GHz and wired) / 90 Hz (Bluetooth mode)
Mount StyleGasket Mount Design
Bluetooth Device NameKeychron V1 Max
Battery4000 mAh Rechargeable li-polymer battery
Wireless Working Time (Backlit off) Up to 225 hours (Lab test result may vary by actual use)
Wireless Working Time (RGB) Up to 100 hours (Lowest brightness)
Charging Time Around 5 hours
Bluetooth Version 5.1
Compatible System Windows/macOS/Linux
N-Key Rollover (NKRO) Yes for both wireless and wired modes
Hot-swappable Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX, Kailh, etc.
Keycaps (Fully Assembled Version)Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)
MCUARM Cortex-M4 32-bit STM32F402 (256KB Flash)
SwitchesGateron Jupiter (Fully Assembled Version)
BacklightSouth-facing RGB LED
StabilizerScrew-in PCB stabs
Charging PortUSB Type-C
CableType-C cable + Type-A to Type-C adapter
Operating Environment-10℃ to 50℃
Section
Drop element here
Keychron V1 Max User Guide

Learn more about the Keychron V1 Max such as the V1 Max shortcuts, assembling the V1 Max, factory reset, and more in the FAQ section.

All Keyboards
All Keyboards

Customer Reviews

Based on 9 reviews
100%
(9)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
M
Mackenzie Brown
Lovely keyboard

This is my first mechanical keyboard, and I LOVE it! The feel is lovely, it makes the best sound with little to no echo, the spacebar is a lot deeper then the other keys. The RGB is great, there's loads of options already loaded and you can have it at a static colour and be able to change it (even to white). The hot swappable feature is great if I want to change my keys out for something better in the future. The battery life is good enough for me, only having to charge it once a week for about 2 hours. I would definitely recommend this keyboard for anyone looking for a good wireless keyboard.

J
Joshua D.
Fantastic Typing Experience

Great keyboard to type on, excellent for gaming. Moved from reds to browns with this new keyboard and am loving the change. The one minor gripe that I have is that there's no dedicated light for caps lock. Instead it changes the colour of the light below the key but from the angle I look at it from the light is completely obscured on that key specifically. So the only way to know if caps lock is on is to start typing or pickup the keyboard and look at it directly. Otherwise great product and love that it comes with both a usb type A and usb type C radio receivers.

M
Muhammed Abdilrahmin
Fantastic value keyboard

Got this keyboard to improve my productivity (writing equations in LaTeX) and am extremely happy with it. Good build quality, extremely customisable, and very usable. The only downside was my unit had ticking stablisers, so I did buy a cheap set ($10) online and placed them in, but aside from that I am very happt with the typing experience. The gasket mount is soft and pillowy and gives it a nice clacky but subdued sound.

M
Mackenzie Brown
Great product

This sounds so good, and I love all the connectivity options for it. I will be keeping this keyboard for a long time.

R
Rhys

Battery lasts for ages and very smooth typing experience. Sounds extremely nice and also very easy to mod (not that you’ll need to)!

Keychron V1 Max QMK/VIA Wireless Custom Mechanical Keyboard 75% Layout Fully Assembled Knob for Mac Windows Linux Gateron Jupiter Red
V Max series

Keychron V1 Max QMK/VIA Wireless Custom Mechanical Keyboard

From $119.00 $129.00

The fully assembled version includes:

The barebone version does not include the keycaps and switches.
No discount codes can be used for V1 Max.

Please drop your email on "Notify Me When Available" if the product model is out of stock.


Type

  • Fully Assembled Knob
  • Barebone Knob

Color

  • Carbon Black

Switches

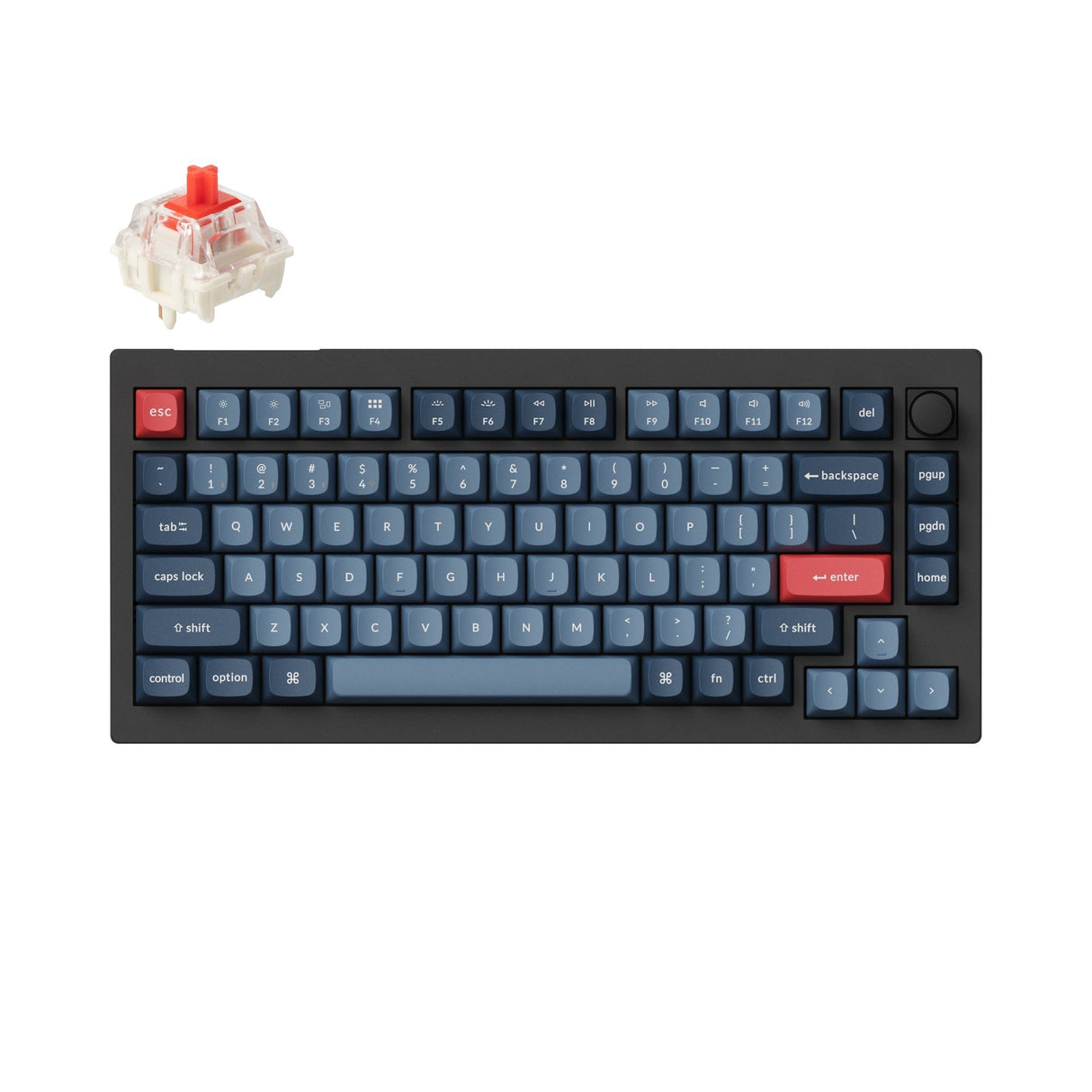

  • Gateron Jupiter Red

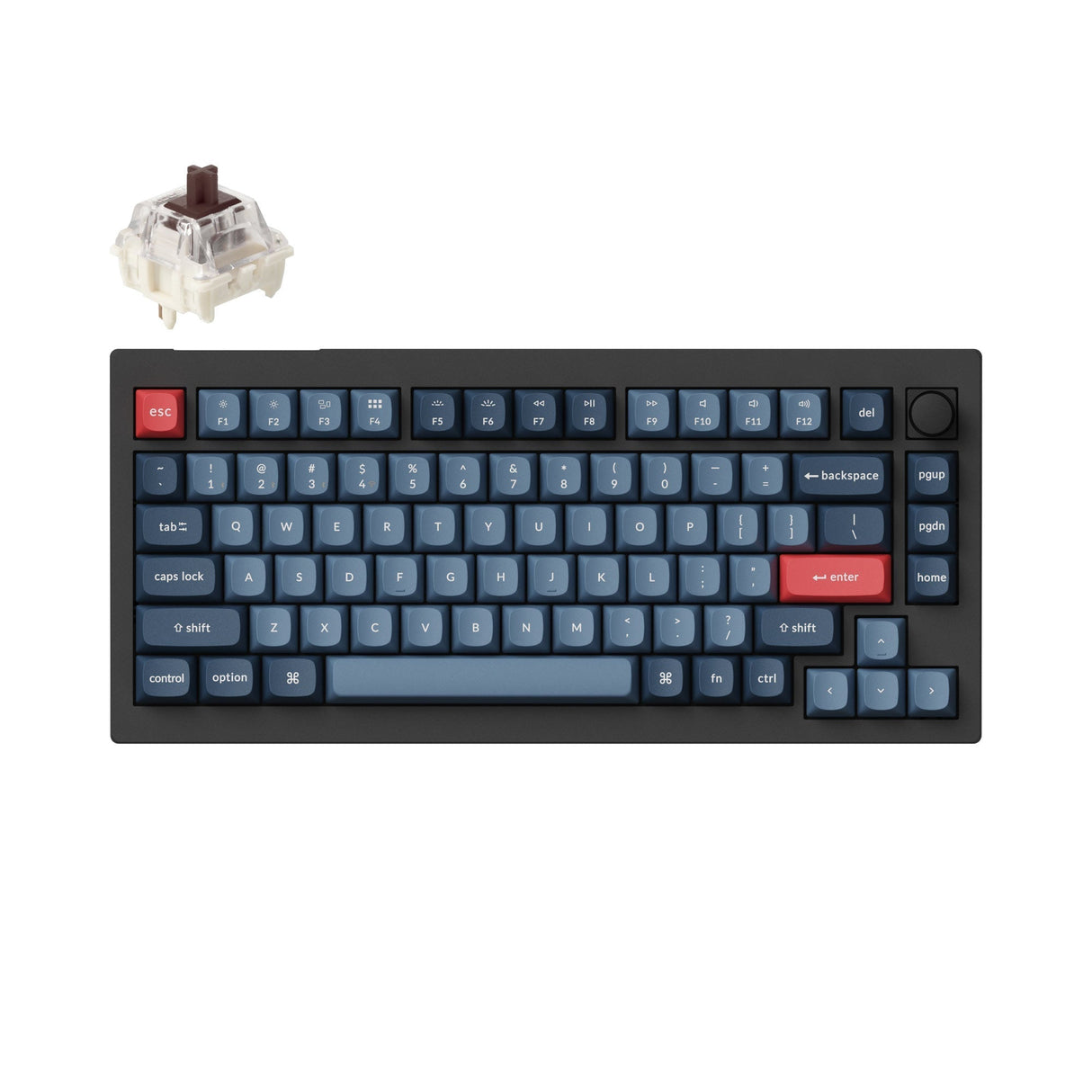

  • Gateron Jupiter Brown

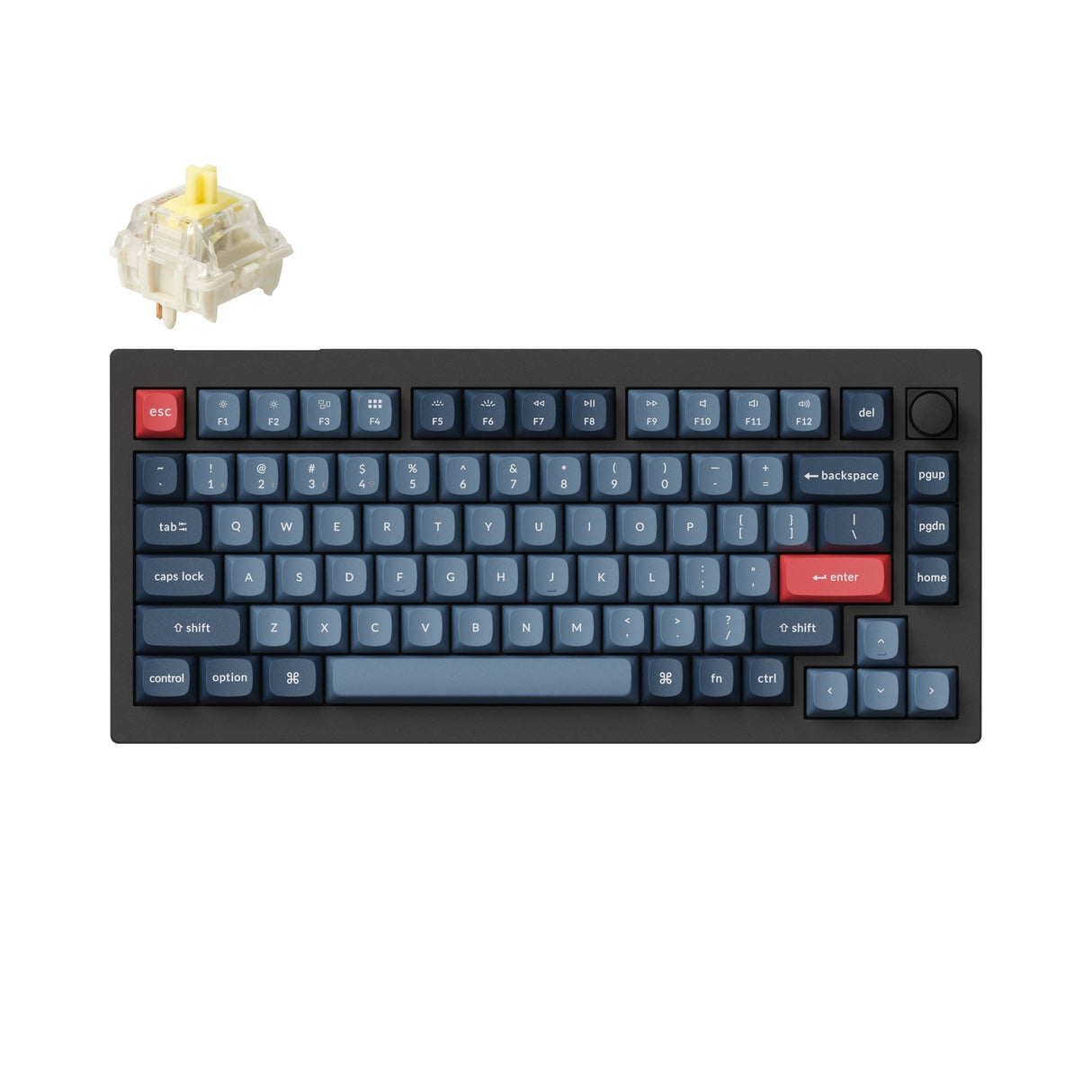

  • Gateron Jupiter Banana

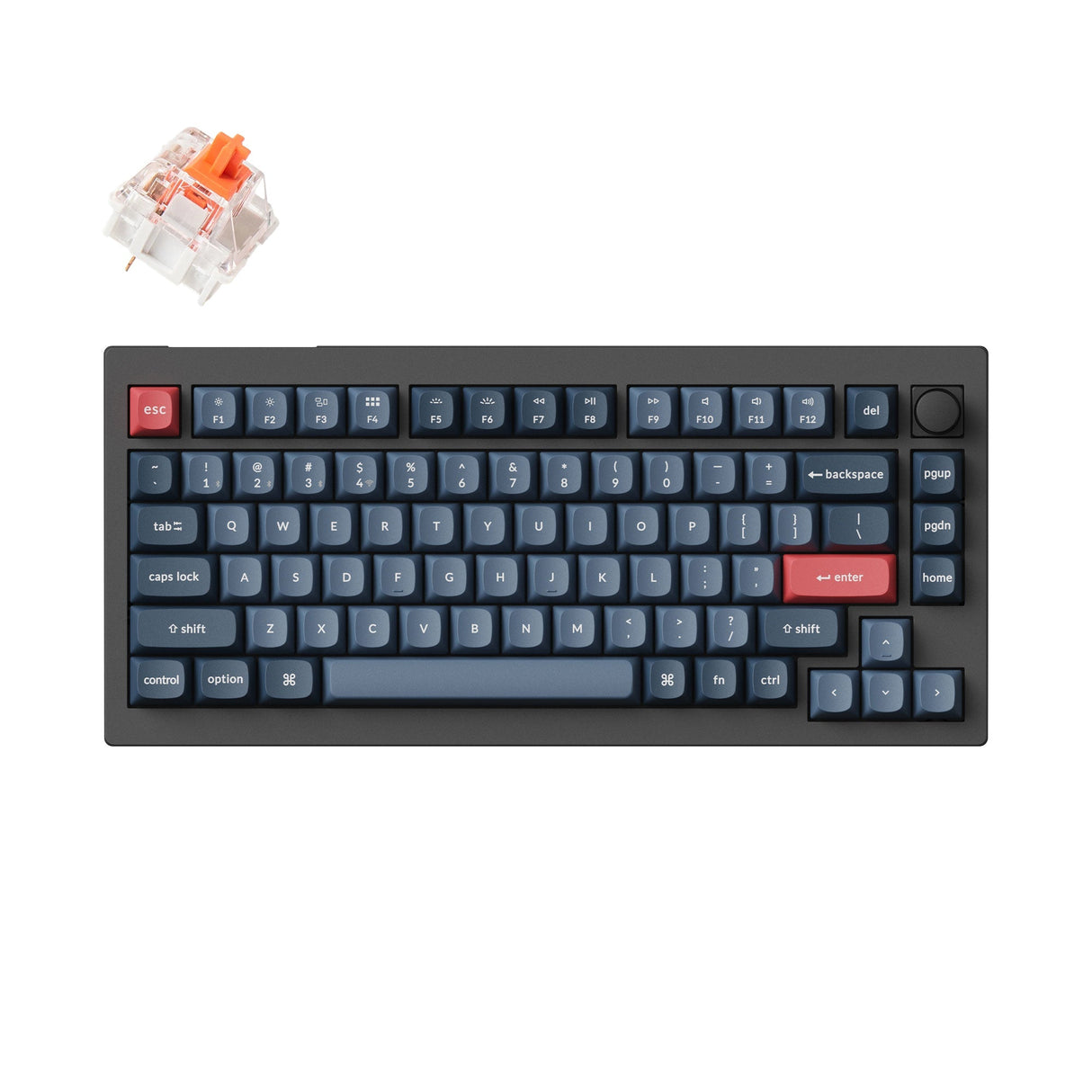

  • Keychron Silent K Pro Switch

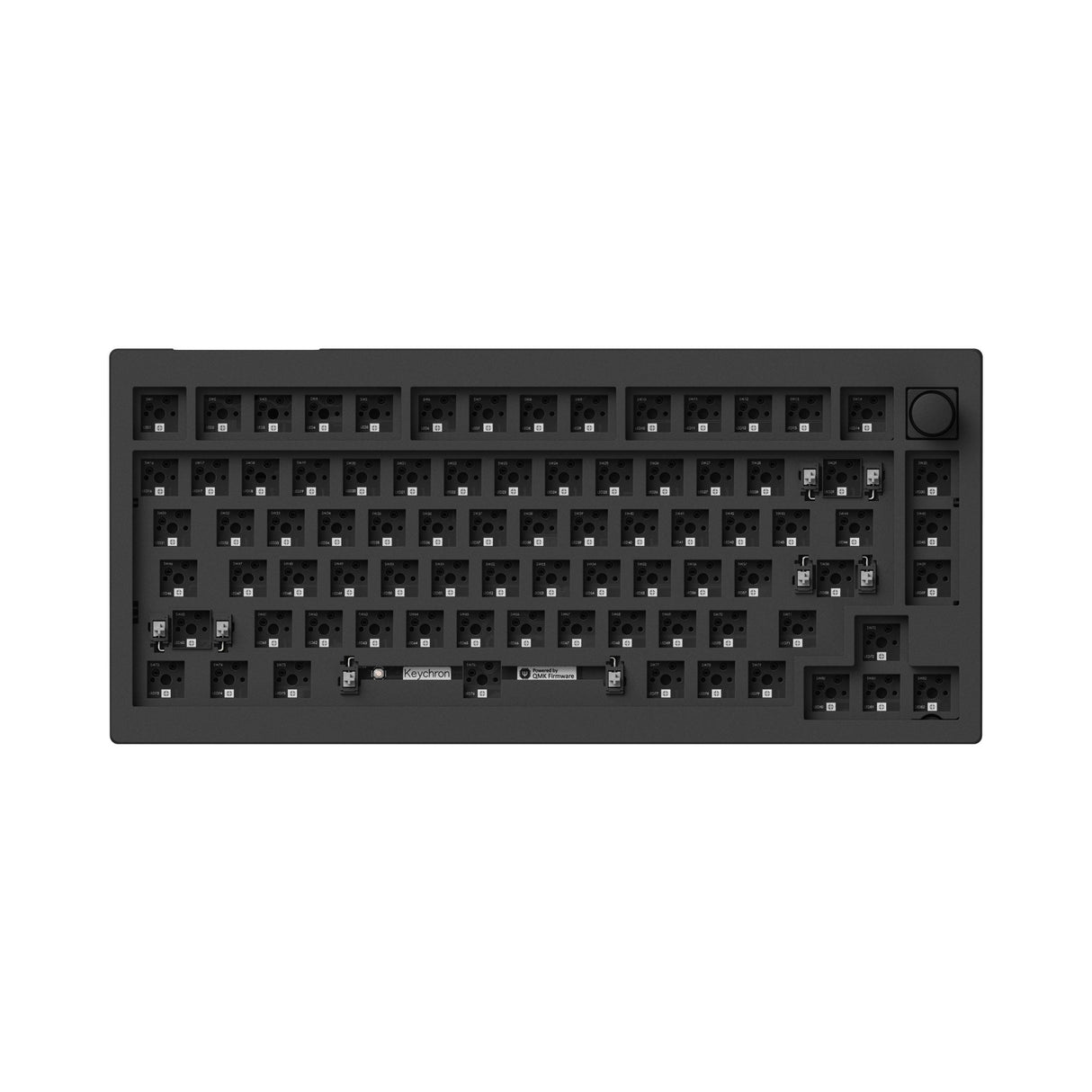

  • Barebone
